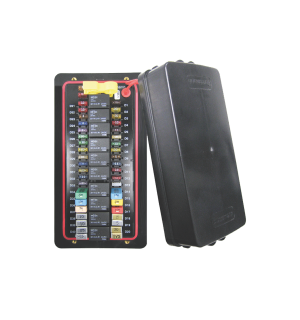

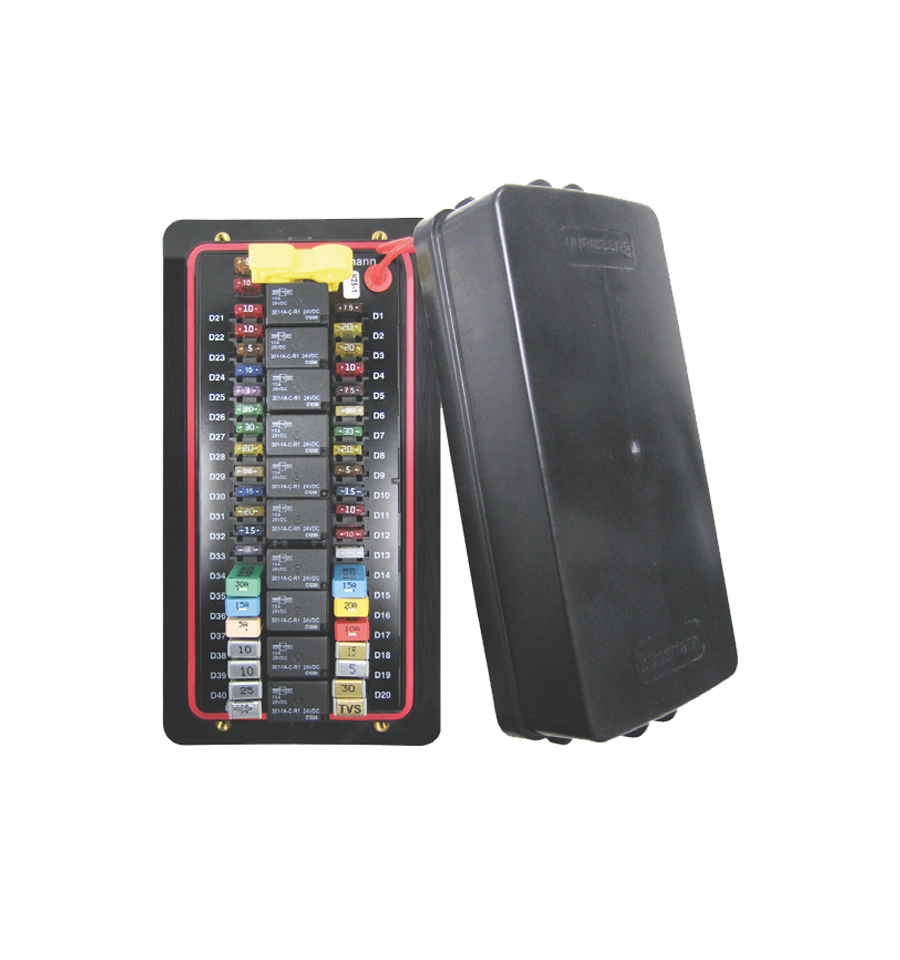

Large power distribution module suitable for up to 40 mini fuses and 10 micro 280 relays. Comes with a dual buss of 20 fuses on the left buss and 20 fuses on the right buss.

Designed to provide efficient power distribution in a rugged compact form.  Also features a slot to hold a fuse fuller and 4 slots for spare fuses.  Suitable for both 12 and 24V applications with a maximum amperage total of 200A.  Dust and water resistant to IP66.  Block is supplied with cover and one nut for each input stud.  All fuses, relays, terminals, cable seals and cavity plugs are supplied separately.  Measures 235mm long X 125mm wide.  Will accept 280 micro relays.
