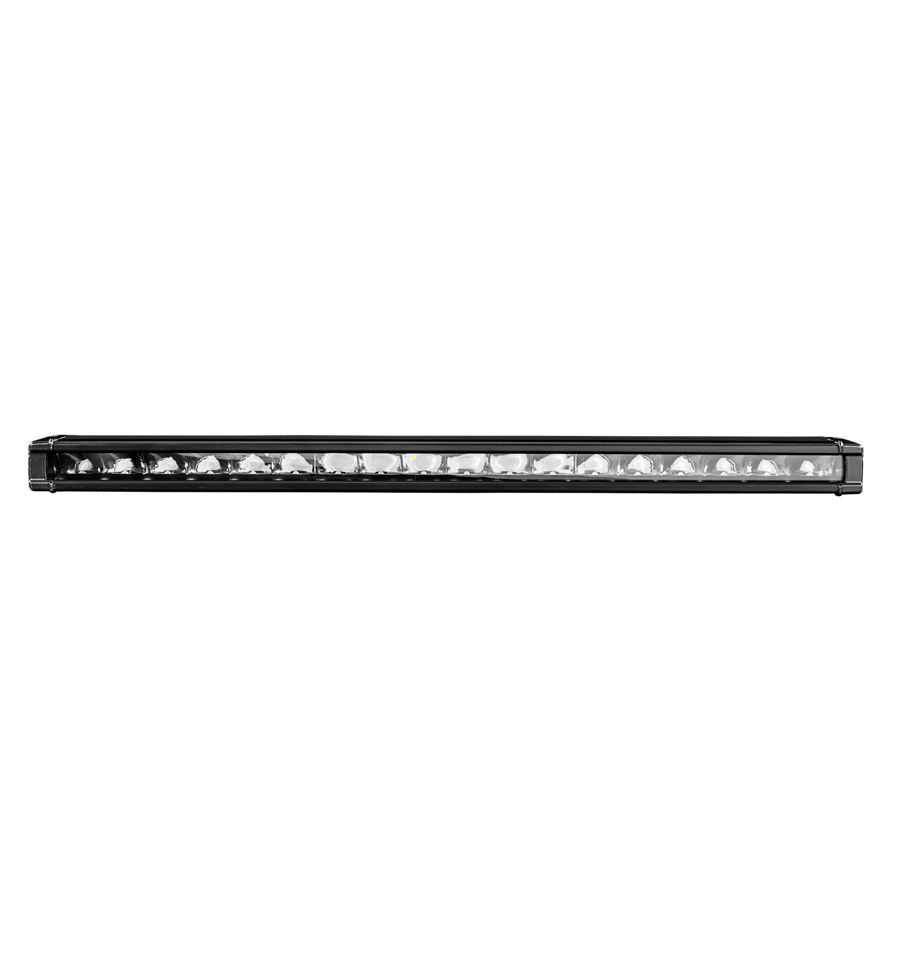

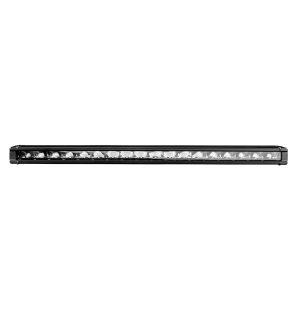

QVWL90D 90W Mini LED Light Bar - Driving Beam

7560 Lumens - 10 to 48 Volt

#QVWL90D

10-48V, 90W, driving beam LED light bar. Contains 18 x 5W high quality Osram LED’s, precision reflectors and optics. 7560 Lumens at 5700K. Heavy duty aluminium housing and polycarbonate lens. IP67 Rated. ECE Approved.

Comes supplied with a side leg mounts.


Product Specifications
  • 7560 Lumens – 90w
  • 10 – 48 Volt
  • IP67 rated
  • 18 x 5w High Powered Osram LED’s
  • Polycarbonate lens
  • Side leg mount
  • 5700K



pdficon_small  Download Specsheet

Beam Coverage

Combo-Beam-Coverage5

Dimensions

W: 528mm (20″)

H: 45mm (1.7″)

D: 68mm (2.6″)
