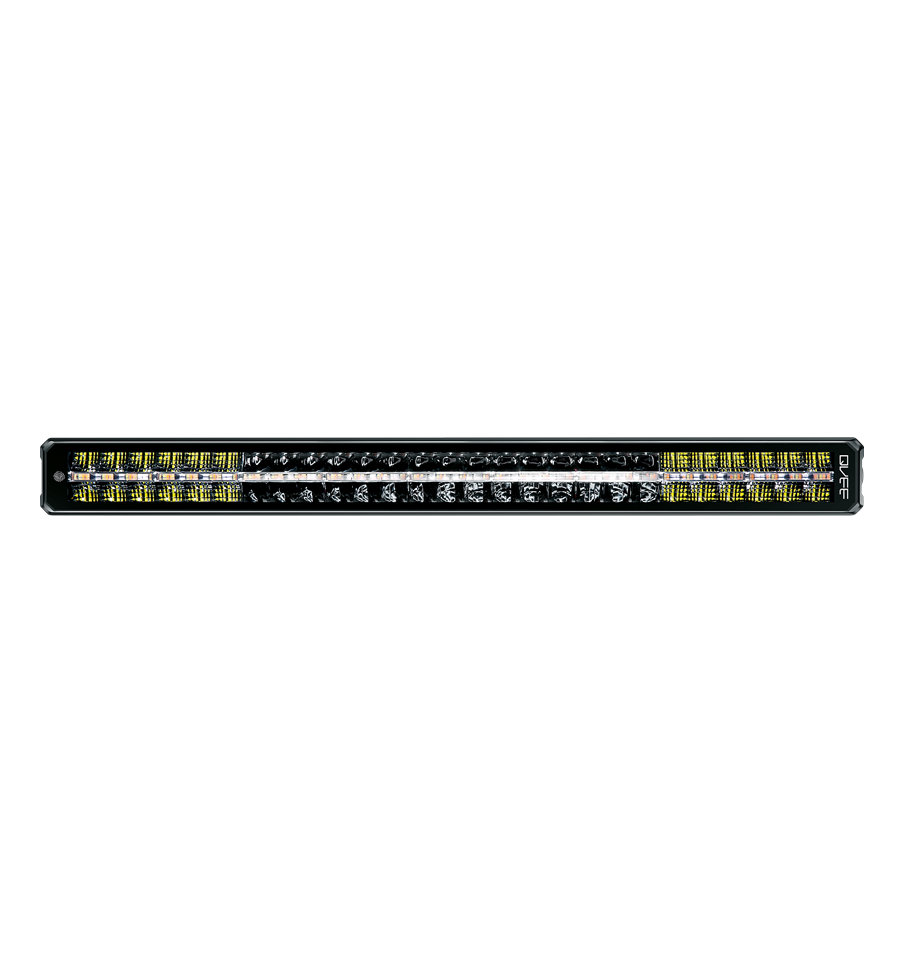

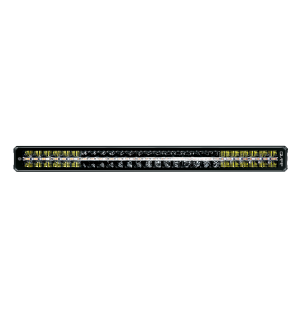

180W LED Light Bar With DRL - Combo Beam

15600 Lumens - 10 to 32 Volt

#QVWL180DRL

The QVWL180DRL is QVEE’s latest heavy duty performer.

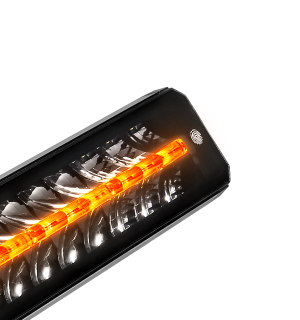

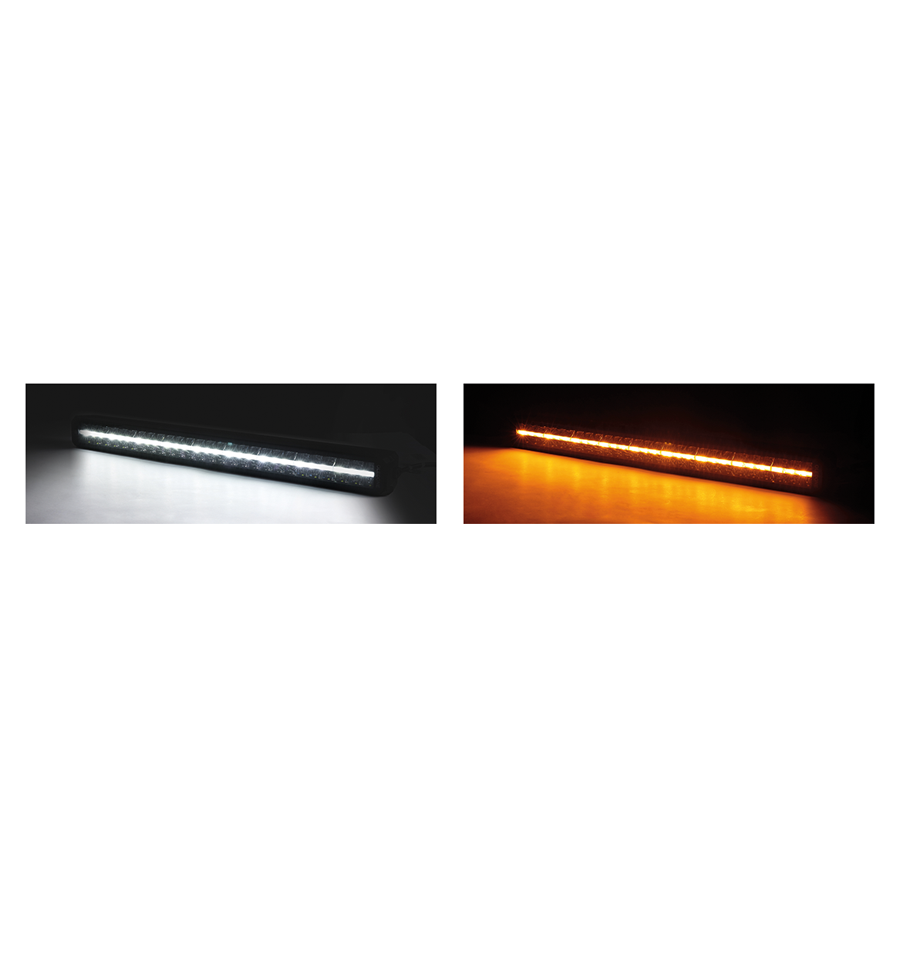

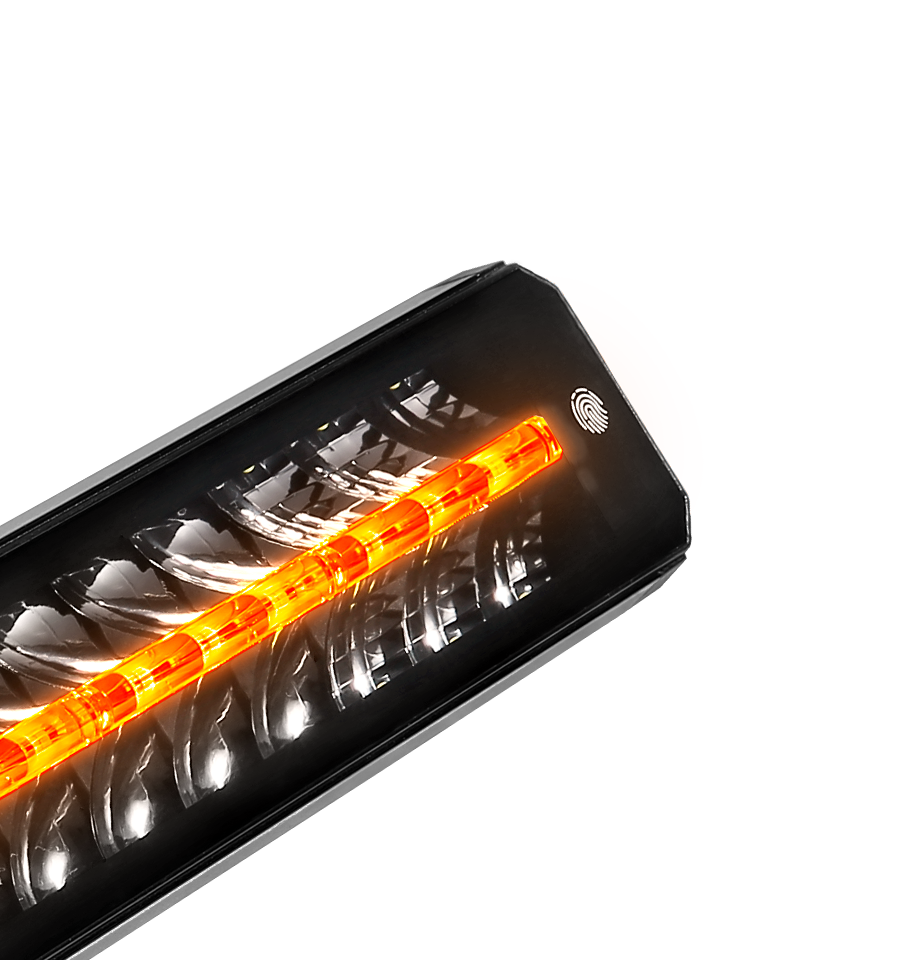

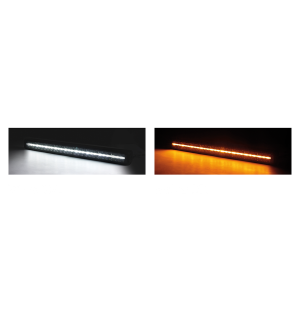

This 180W Double Row LED Bar with DRL, features an interactive touch control design, allowing the DRL to be switched from white to amber with the touch of a button. Equipped with 54 x 3W high powered LED’s & 36 DRL LED’s producing a massive 808m combo beam at 1 lux. IP68/IP69K protection.

Supplied with channel mounting & optional side mounting to suit 4WD, Transport, Mining or Agricultural applications.


Product Specifications
  • 15,600 Lumens – 180w
  • 10 – 32 Volt
  • IP68/IP69K rated
  • 54 x 3w High Powered LED’s
  • 36 x High Powered DRL LED’s
  • Polycarbonate lens
  • Channel Mount
  • Optional Side Leg Mount P/N QVWLEGSDRL
  • 6000 K



pdficon_small  Download Specsheet

Beam Coverage

Combo-Beam-Coverage2

Dimensions

W: 822mm (32″)

H: 78mm (3″)

D: 72mm (2.8″)
