20 Circuit Mini Fuse Block Kit

Sold Individually

#QVPDMKIT001

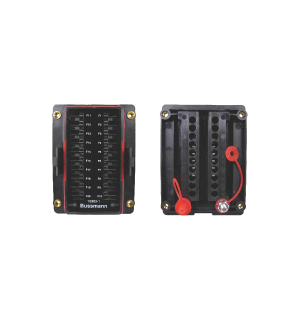

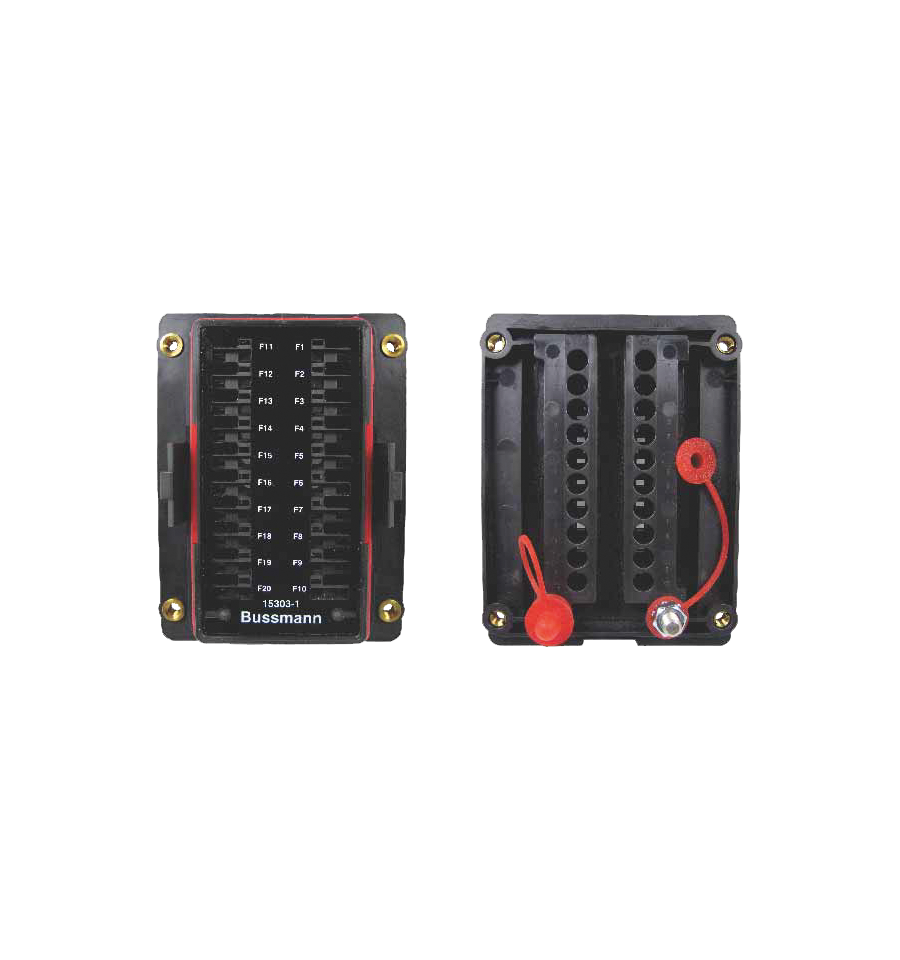

This kit can supply fused power for up to 20 output circuits.  Has 2 input power feeds connected to the rear studs of the block and each stud supplies power to 1 side of the block (10 circuits).  Water and dust protected to IP66 rated when assembled correctly.  Measures 113mm long X 86mm wide X 89mm high.




Product Specifications

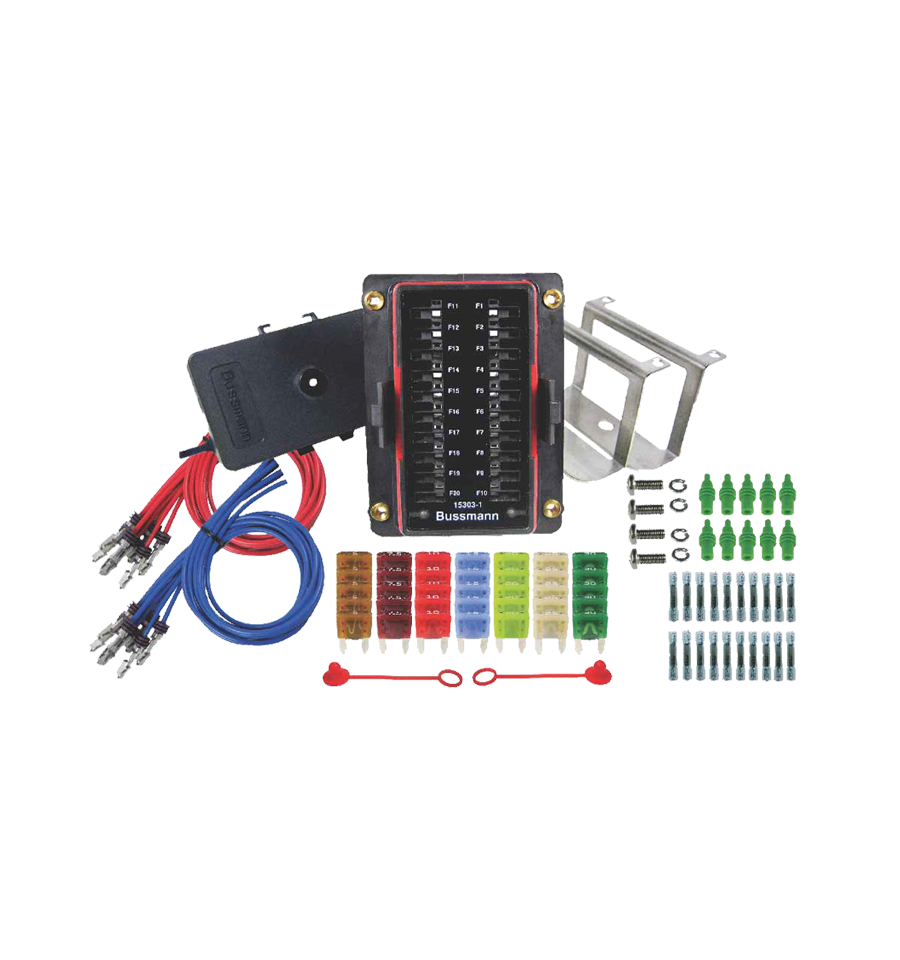

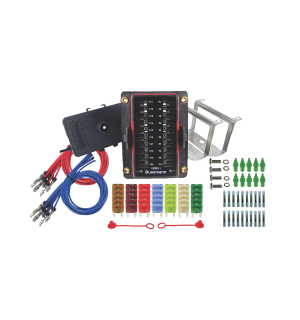

KIT INCLUDES:

  • 1 x 20 circuit mini fuse block
  • 1 x Shallow fuse cover with vent
  • Stainless steel mounting brackets, washers and bolts
  • 10 x Cavity plugs
  • 10 x Blue 300mm long output cables with terminals and seals
  • 10 x Red 300mm long output cables with terminals and seals
  • 5 x 5A mini fuses
  • 5 x 7.5A mini fuses
  • 5 x 10A mini fuses
  • 5 x 15A mini fuses
  • 5 x 20A mini fuses
  • 5 x 25A mini fuses
  • 5 x 30A mini fuses



pdficon_small  Download Specsheet
