18 Position Power Distribution Module

Sold Individually

#QVPDM31001ZXM

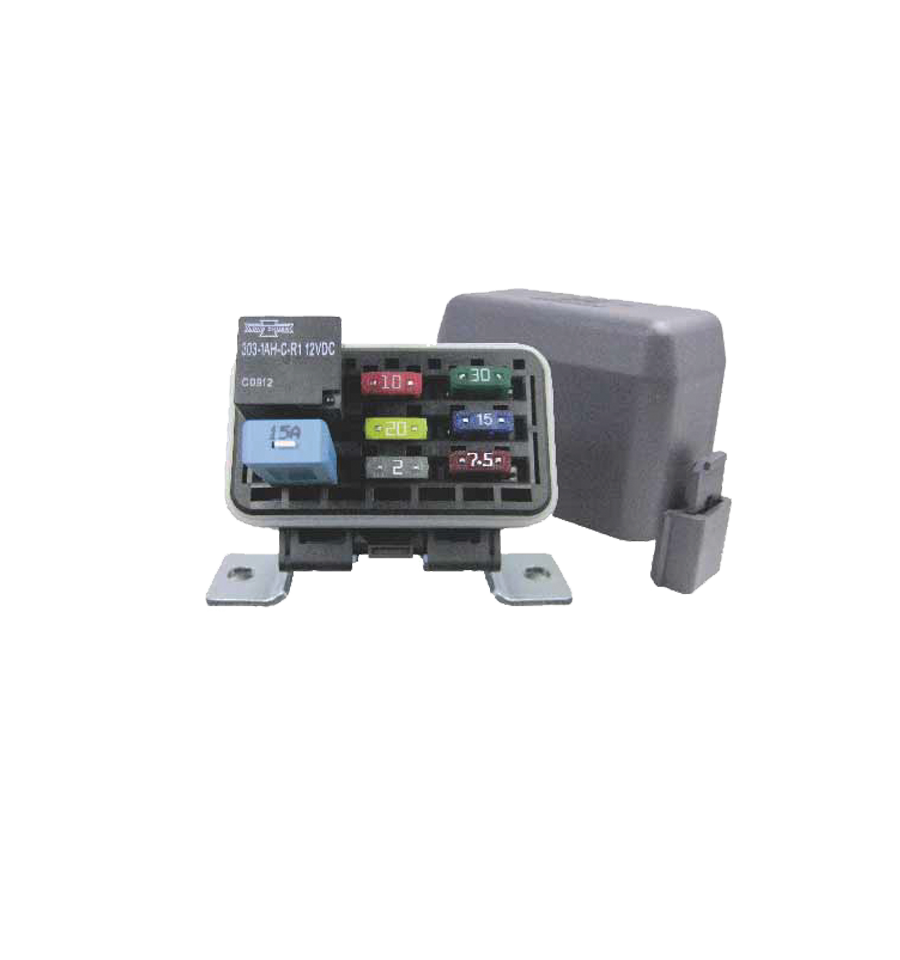

This 18 position power distribution module provides a compact, durable and sealed power distribution solution for the transportation market.  Designed to suit mini blade fuses and micro relays and has an overall dimension of 80.4mm long X 52mm wide X 74.2mm high.  Includes waterproof cover, mounting bracket and cover seal.  Maximum 30A per circuit.  Terminals, seals, cavity plugs, relays and mini fuses sold separately.  Will accept 280 ultra micro relays, 280 micro relays and 280 mini relays.
