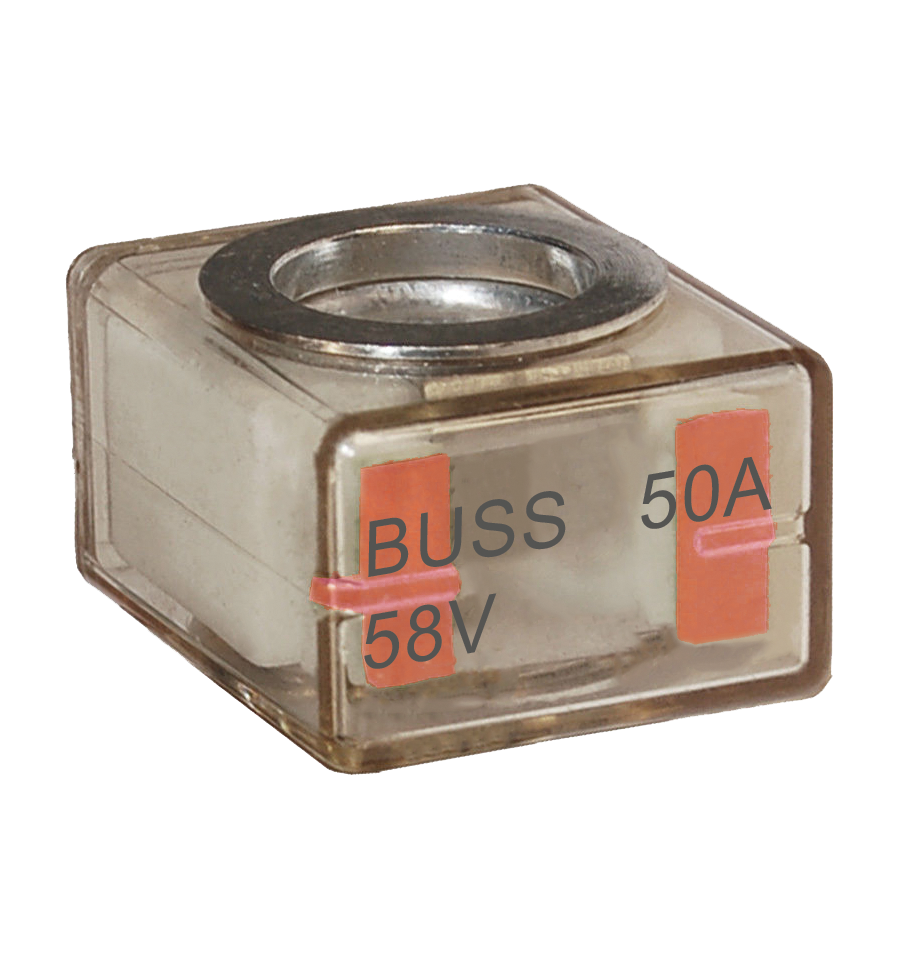

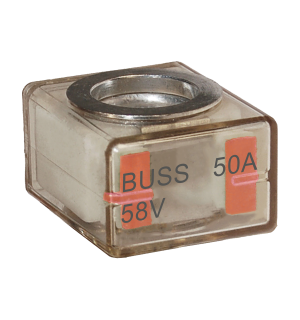

50A Red Battery Fuse

Sold Individually

#MRBF050

Designed for the most extreme applications, these slow acting battery fuses provide high current for areas with space limitations and are suitable for main feeds to and from alternators and starter motors.

To be used in conjunction with out CFBAR1SP-KIT and CFBAR2SP-KIT battery fuse holders.  Weatherproof to IP66 rating and ignition protected.  Suitable for up to 58VDC max with a clear, colour coded housing for visual indication of blown fuse.


Product Specifications
  • Amperage Rating:  50 Amp
  • 28mm long x 23mm wide x 17mm high



pdficon_small  Download Specsheet
