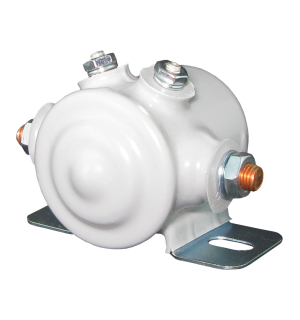

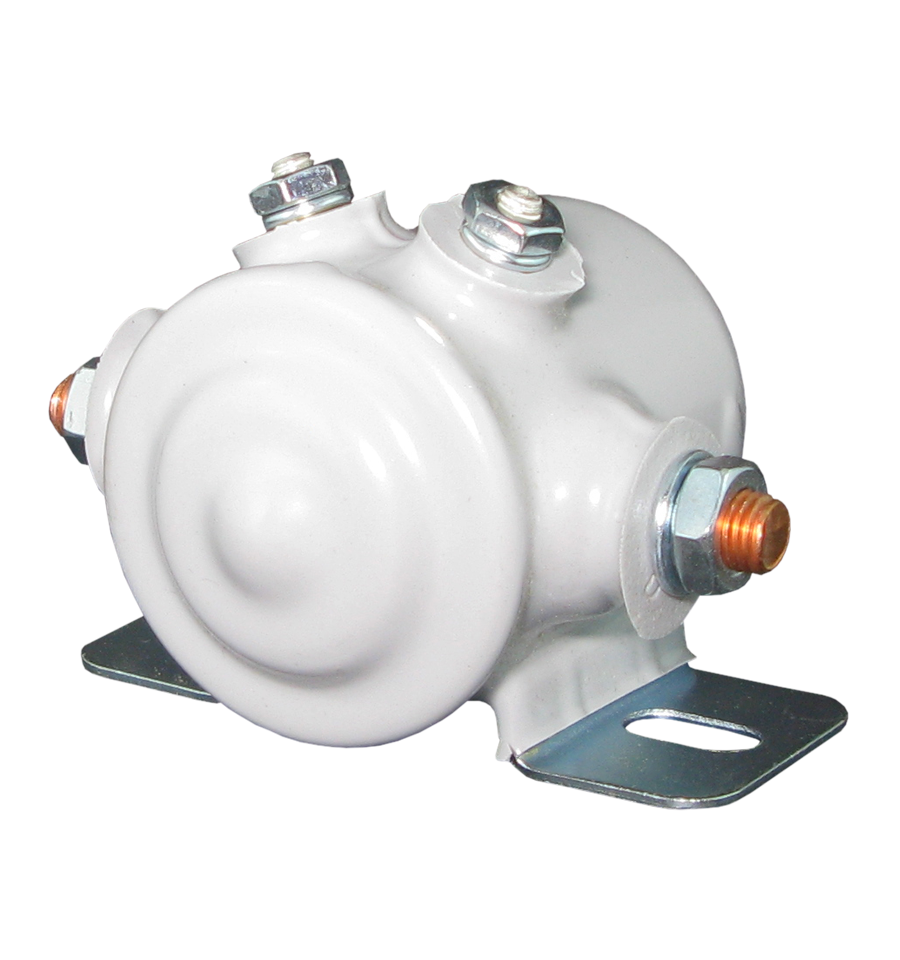

12V 85A Continuous Duty Solenoid with PVC Coating

Sold Individually

#M24117B

12V, 85A continuous duty solenoid.  PVC dipped housing specifically designed for marine applications.  SPST (single circuit) solenoid with insulated earth stud.


Product Specifications
  • 12V, 85A continuous
  • PVC dipped steel housing
  • Copper stud terminals 5/16″
  • Insulated coil terminals 10-32
  • 8mm mounting holes, 56mm centre – centre
  • Intermittent rating 10 seconds ON, 30min OFF
  • 750A make, 100A break
  • Ignition protected
  • Copper Contacts
  • ISO 8846 UL Marine Listed



pdficon_small  Download Specsheet
