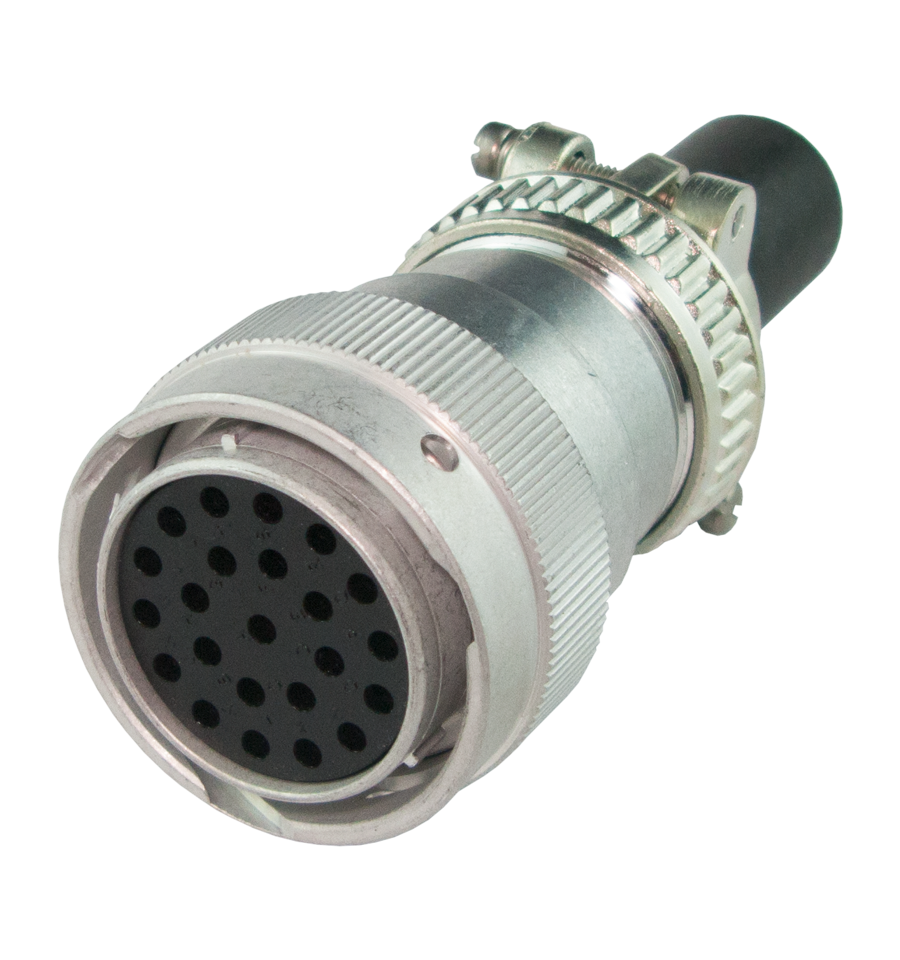

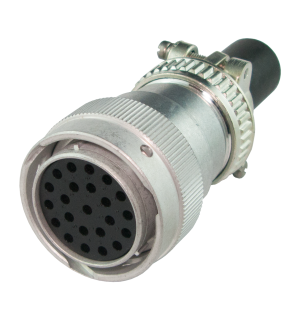

Deutsch HD30 Series Plug with Cable Clamp - Size 24 Shell - 23 Extra Thin Walled Circuits - Takes Sockets

Sold Individually

#HD36-24-23SE-059

Deutsch HD30 Series Plug with an attached shell adaptor and cable clamp. Size 24 shell or 43mm diameter. Contains 23 size 16 sockets. Size 16 contacts are rated at 13A per circuit. This connector is specially designed for use with extra thin walled cables. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 23 x Size 16 sockets rated at 13A per circuit at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms 10-2000Hz
