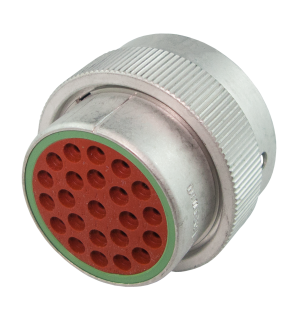

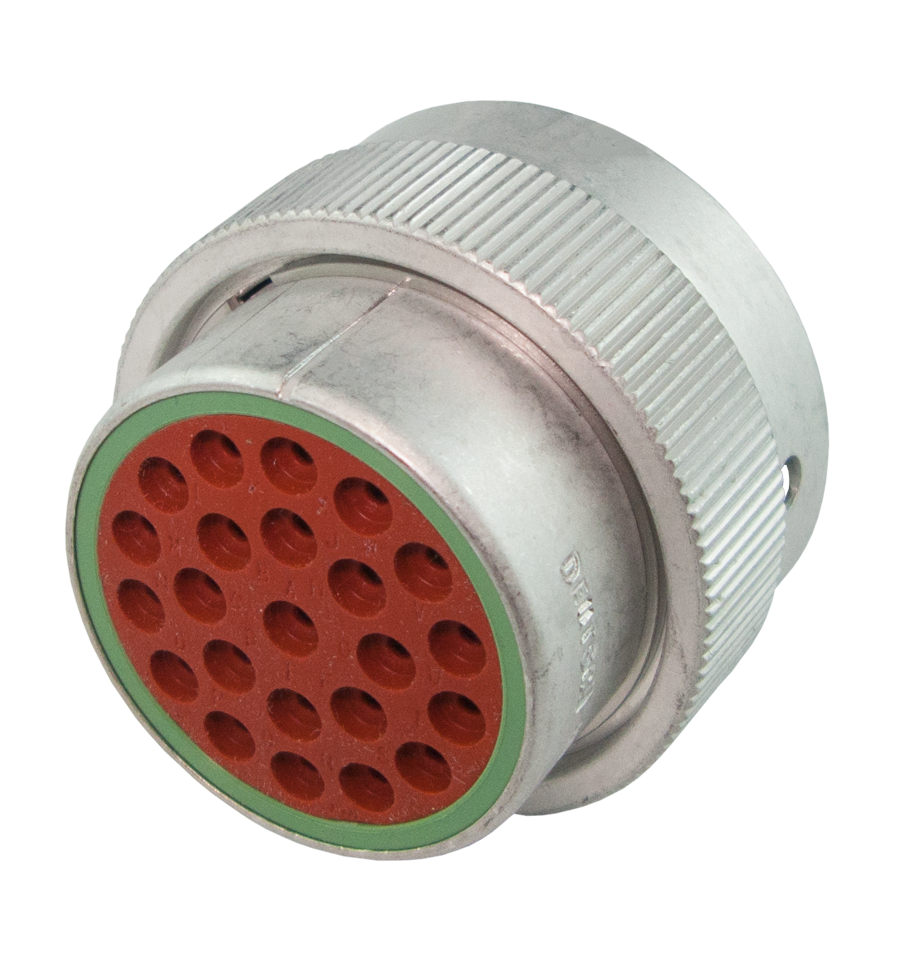

Deutsch HD30 Series Plug with Size 24 Shell - 23 Circuit Takes Pins

Sold Individually

#HD36-24-23PN

Deutsch HD30 Series Plug. Size 24 shell or 43mm diameter. Contains 23 size 16 pins. Size 16 contacts are rated at 13A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 23 x Size 16 pins rated at 13A per circuit at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms 10-2000Hz
