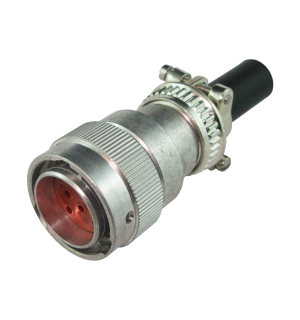

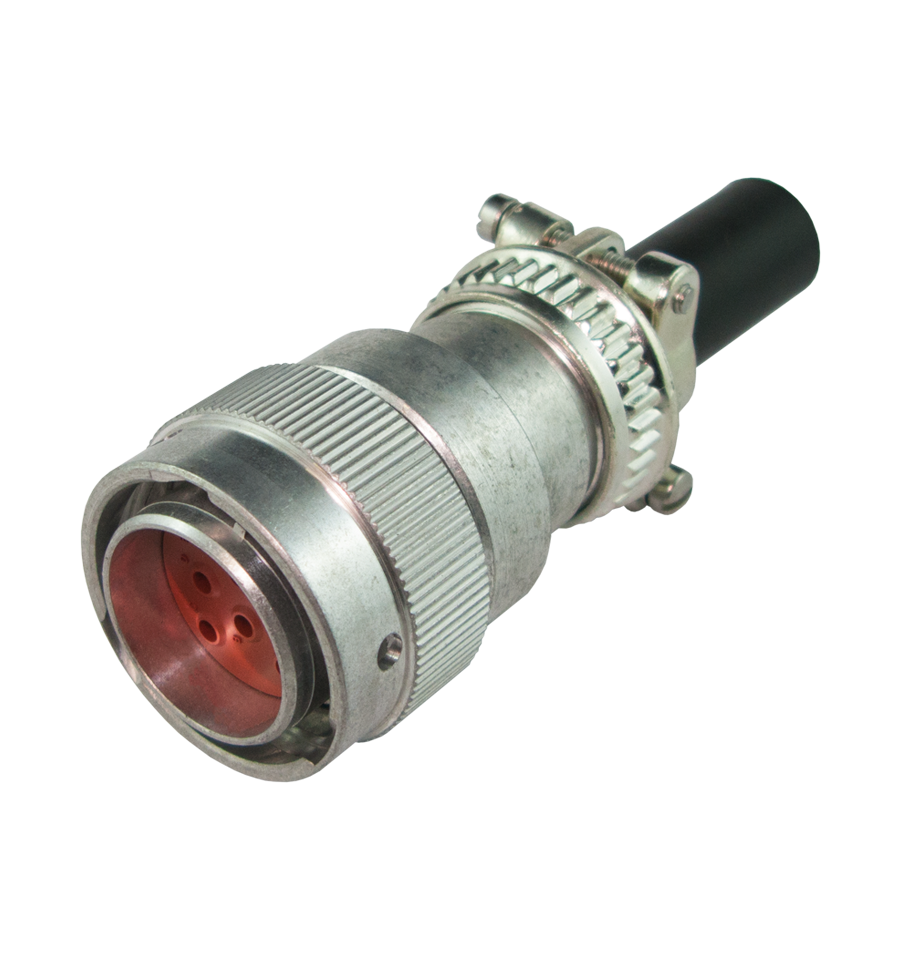

Deutsch HD30 Series Plug with Cable Clamp - Size 18 Shell - 8 Circuit Takes Pins
Sold Individually
#HD36-18-8PN-059
Deutsch HD30 Series Plug with an attached shell adaptor and cable clamp. Size 18 shell or 38mm diameter. Contains 8 size 12 pins rated at 25A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.
Product Specifications
- 8 x Size 12 pins rated at 25A per circuit at 125C
- Rated to IP67 Specifications
- Aluminium housing and silicon rubber seal
- Operating Temperature -55C to 125C
- Vibration 20G rms 10-2000Hz
