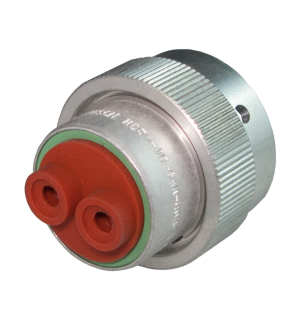

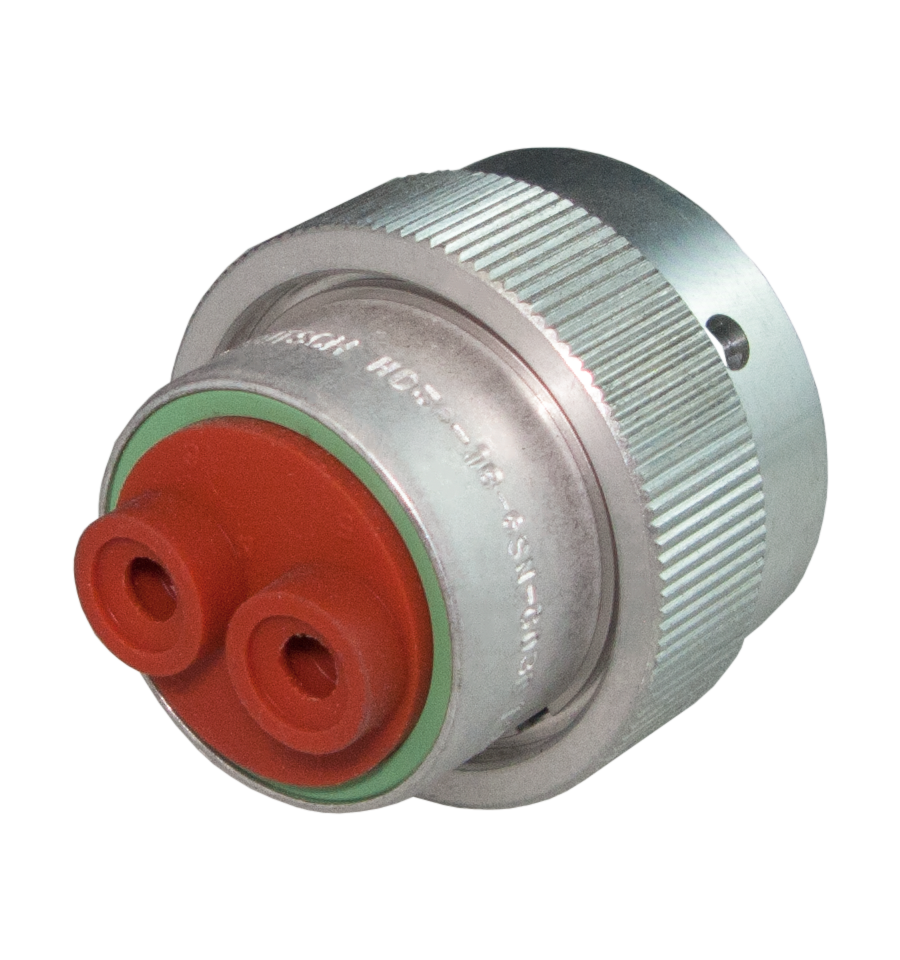

Deutsch HD30 Series Plug with Size 18 Shell - 6 Circuit Takes Sockets

Sold Individually

#HD36-18-6SN

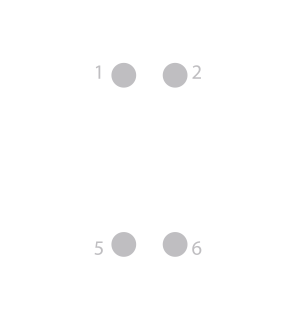

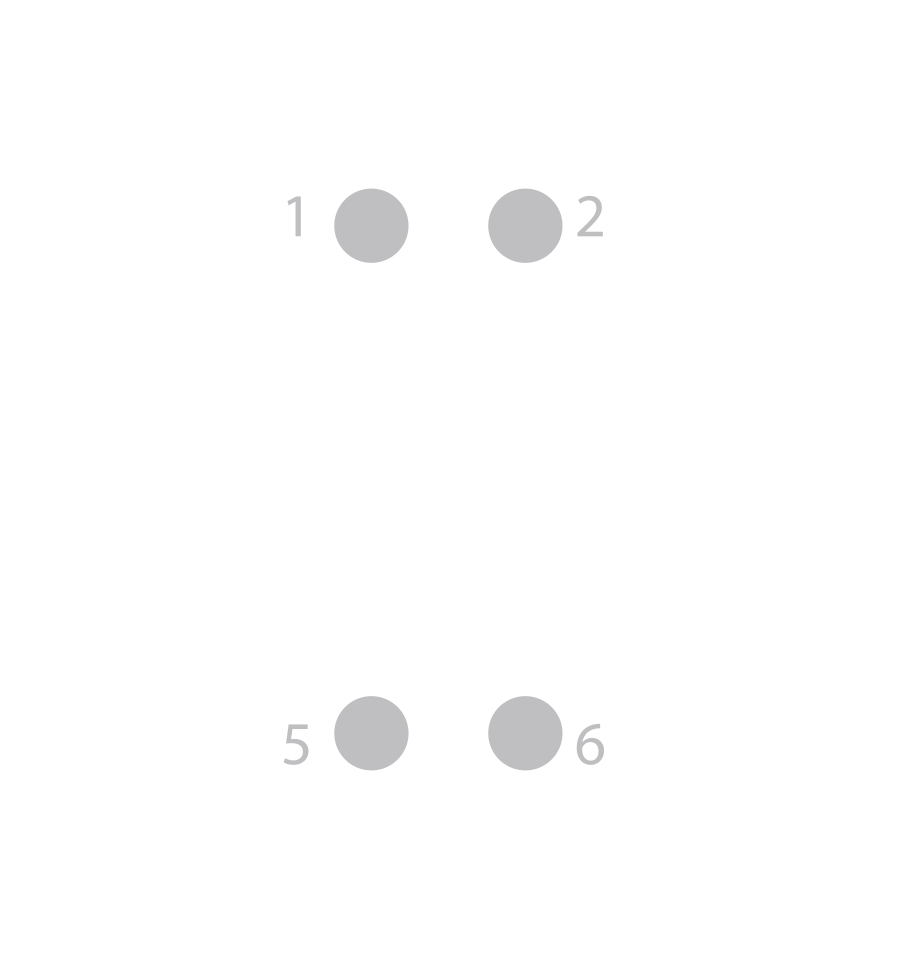

Deutsch HD30 Series Plug. Size 18 shell or 38mm diameter. Contains 2 size 4 sockets and cavities 1, 2, 5 and 6 are blocked out. Size 4 contacts are rated at 100A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 2 x Size 4 sockets rated at 100A per circuit at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Vibration 20G rms 10-2000Hz



pdficon_small  Download Specsheet
