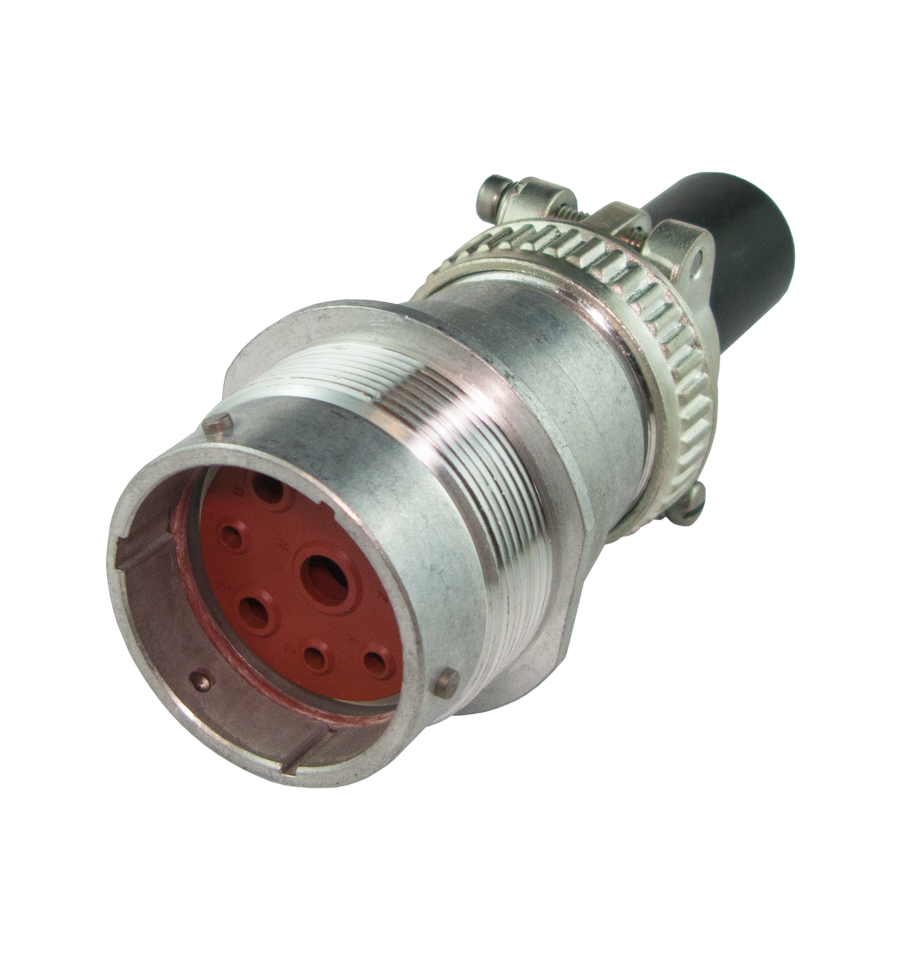

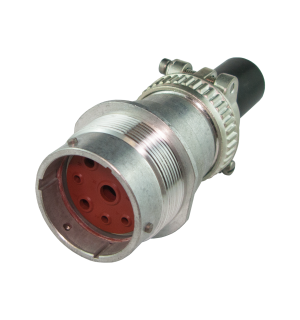

Deutsch HD30 Series Receptacle with Cable Clamp - Size 24 Shell - 9 Circuit Takes Pins

Sold Individually

#HD34-24-9PN-059

Deutsch HD30 Series Receptacle with an attached shell adaptor and cable clamp. Size 24 shell or 43mm diameter. Contains 1 size 4 pin, 2 size 8 pins and 6 size 12 pins. Size 4 contacts are rated at 100A per circuit. Size 8 contacts are rated at 60A per circuit. Size 12 contacts are rated at 25A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • 1 x Size 4 pin rated at 100A per circuit at 125C, 2 x Size 8 pins rated at 60A per circuit at 125C, 6 x Size 12 pins rated at 25A per circuit at 125C
  • Rated to IP67 Specifications
  • Aluminium housing and silicon rubber seal
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms 10-2000Hz
