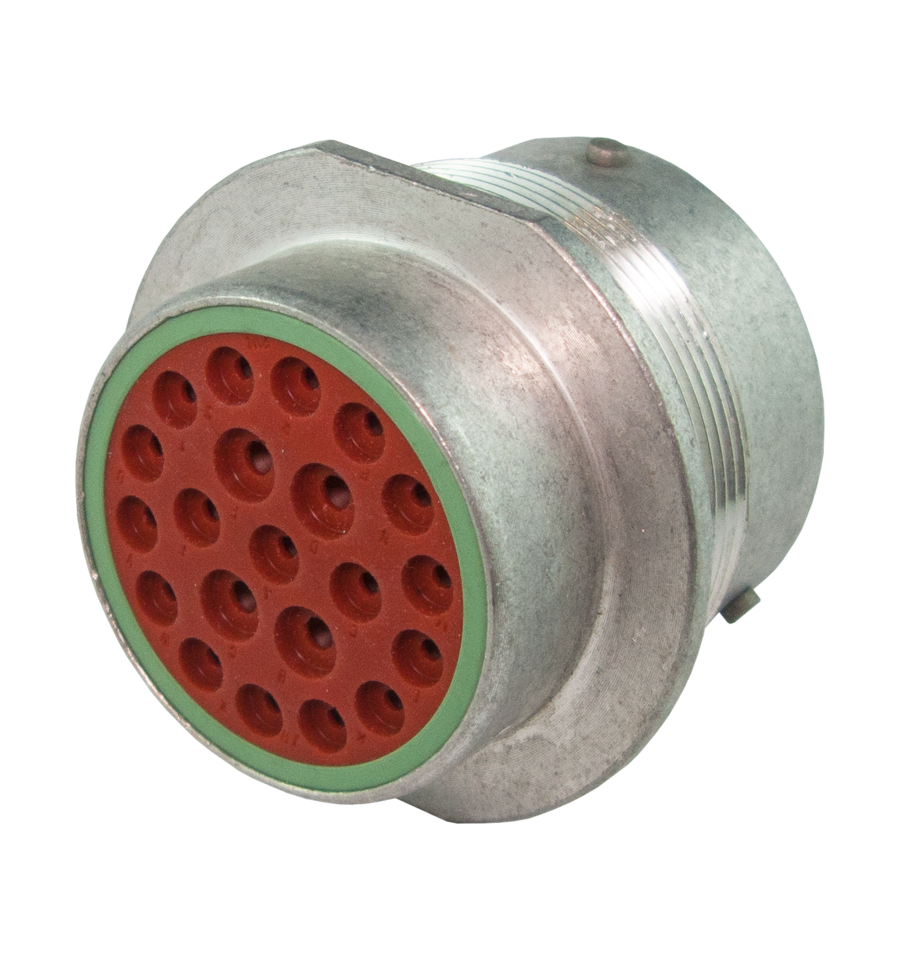

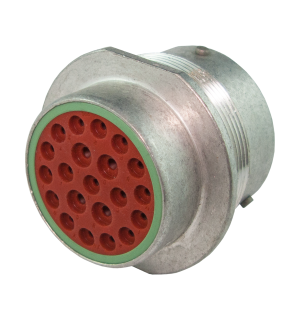

Deutsch HD30 Series Receptacle with Size 24 Shell - 21 Circuit Takes Sockets
Sold Individually
#HD34-24-21SN
Deutsch HD30 Series Receptacle. Size 24 shell or 43mm diameter. Contains 4 size 12 sockets and 17 size 16 sockets. Size 12 contacts are rated at 25A per circuit. Size 16 contacts are rated at 13A per circuit. These industry proven connectors are environmentally sealed to IP67 standards. Able to be used in both inline and bulk head applications. They have a quick connect bayonet style coupling. Specifically designed for the truck, mining and construction industry.
Product Specifications
- 4 x Size 12 sockets rated at 25A per circuit, 17 x Size 16 sockets rated at 13A per circuit.
- Rated to IP67 Specifications
- Aluminium housing and silicon rubber seal
- Operating Temperature -55C to 125C
- Shock 50G
- Vibration 20G rms 10-2000Hz
