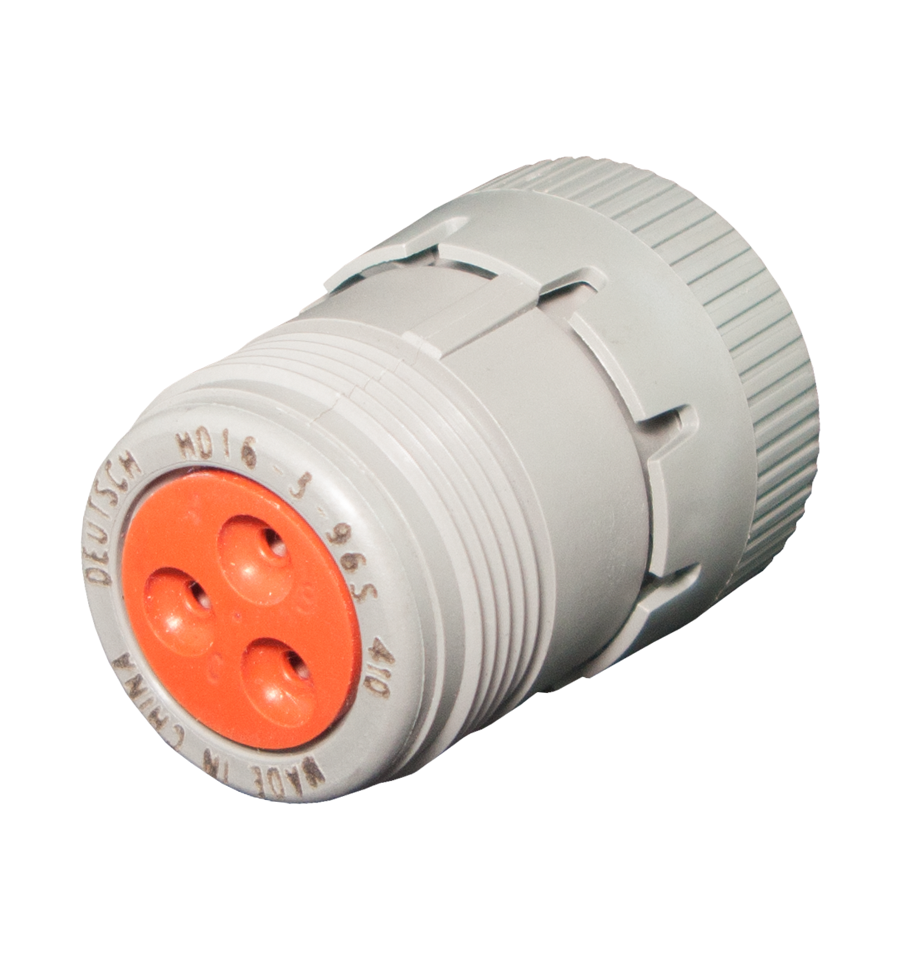

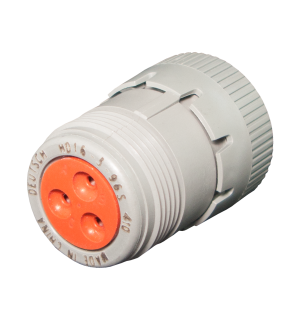

Deutsch HD10 Series 3 Circuit Plug - Threaded
Sold Individually
#HD16-3-96S
Deutsch HD10 Series 3 circuit plug with a threaded end to accept strain relief fittings. Environmentally sealed to IP68 rating. Bayonet type, quick connect coupling.
Product Specifications
- Rated to IP68 Specifications
- Contact Rating 13A @ 125C per contact
- Operating Temperature -55C to 125C
- Shock 50G
- Thermoplastic Housing
- Silicon Rubber Seals
- Vibration 20G rms 10-2000Hz
Download Specsheet
