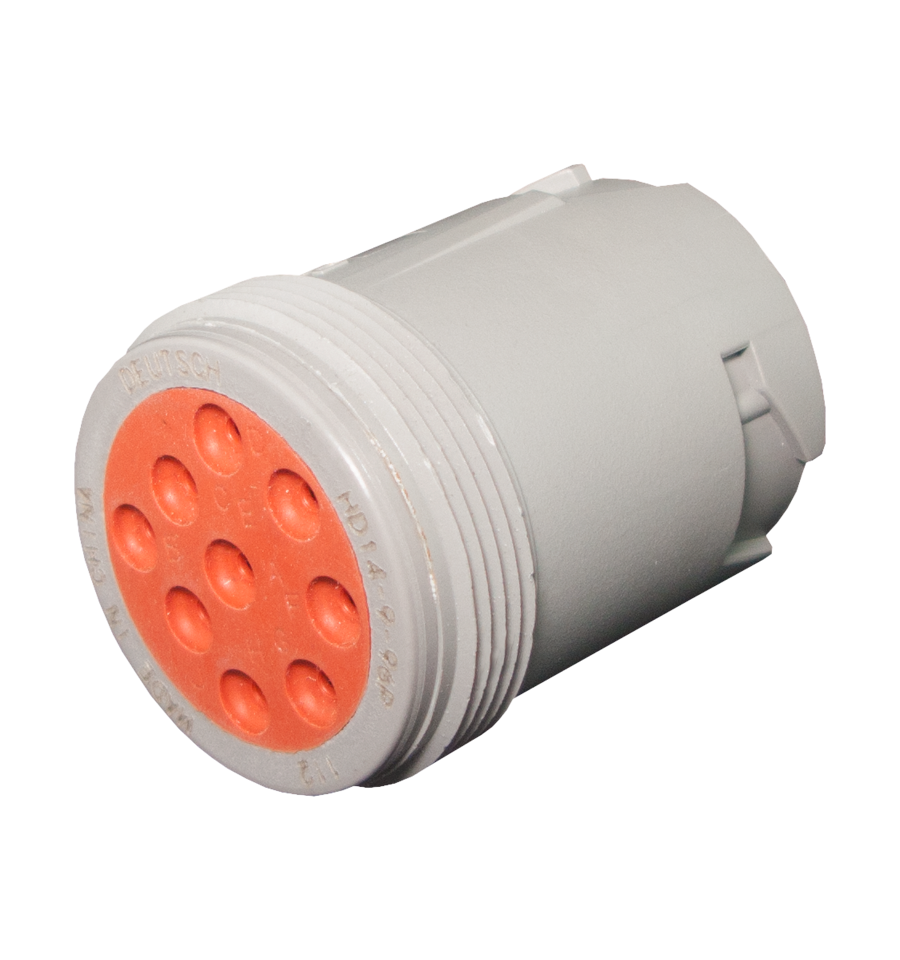

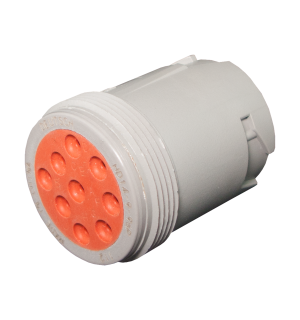

Deutsch HD10 Series 9 Circuit In-Line Receptacle - Threaded

Sold Individually

#HD14-9-96P

Deutsch HD10 Series 9 circuit in-line receptacle with a threaded end to accept strain relief fittings. Environmentally sealed to IP68 rating. Bayonet type, quick connect coupling.


Product Specifications
  • Rated to IP68 Specifications
  • Contact Rating 13A @ 125C per contact
  • Operating Temperature -55C to 125C
  • Shock 50G
  • Thermoplastic Housing
  • Silicon Rubber Seals
  • Vibration 20G rms 10-2000Hz



pdficon_small  Download Specsheet
