Deutsch HD10 Series 5 Circuit Flange Mount Receptacle - No Thread
Sold Individually
#HD10-5-16P

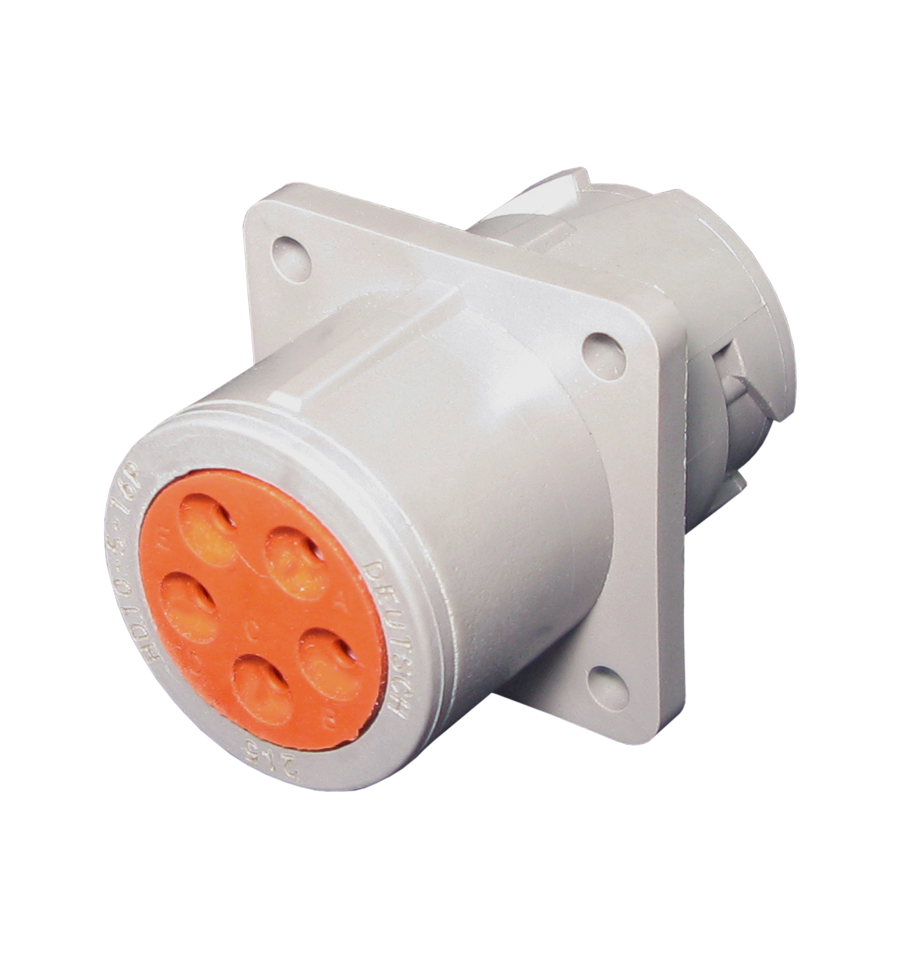

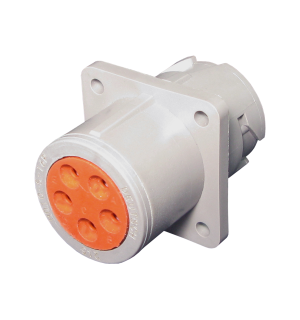

Deutsch HD10 Series 5 circuit receptacle. Has a single hole bulkhead flange mount with no thread. Environmentally sealed to IP68 rating. Bayonet type, quick connect coupling.
Product Specifications
- Rated to IP68 Specifications
- Contact Rating 13A @ 125C per contact
- Operating Temperature -55C to 125C
- Shock 50G
- Thermoplastic Housing
- Silicon Rubber Seals
- Vibration 20G rms 10-2000Hz
Download Specsheet
