Deutsch 2 Pin Large DTP Series Complete Connector Kit
Complete Kit
#DTP2

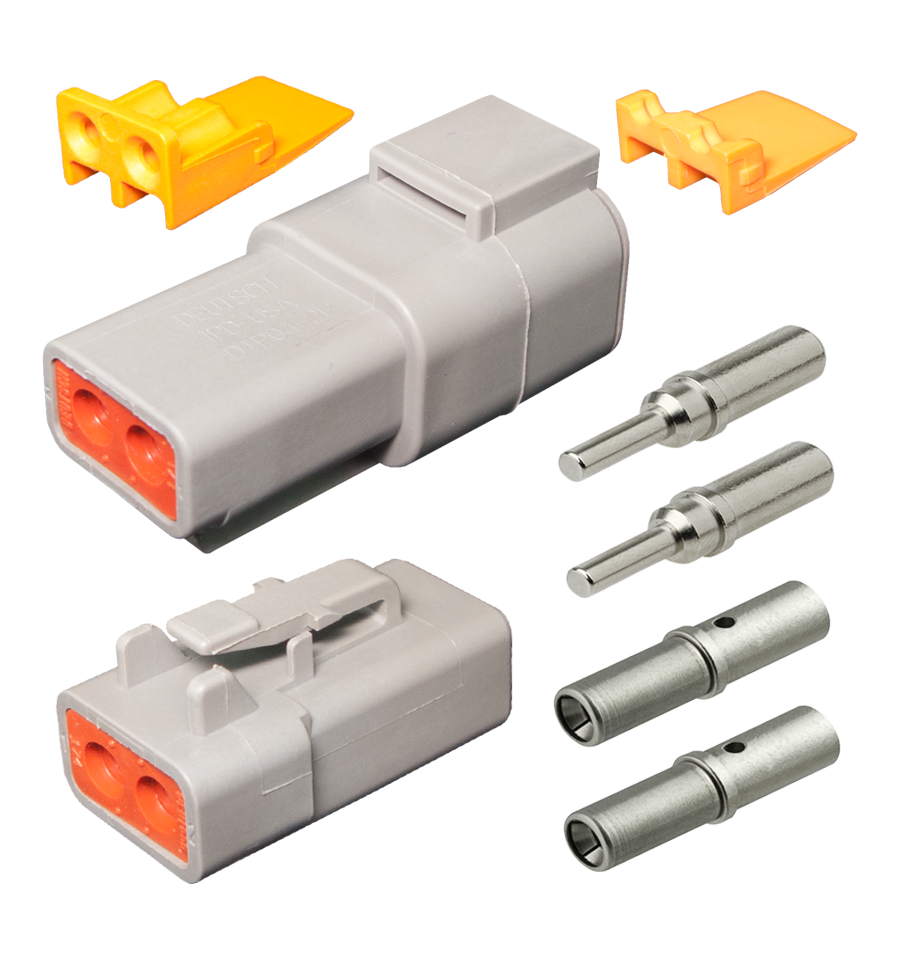

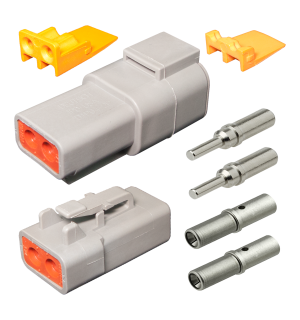

2 circuit DTP Series Deutsch connector kit. Contains large terminals suitable for up to 25A per circuit. Complete with male and female housings, wedges and terminals. Deutsch DTP Series of environmentally sealed connectors are designed specifically for cable to cable applications on the engine or transmission, under the hood, on the chassis or in the cab. Where signal level circuits in harsh environmental conditions, where even a small degradation in connection may be critical.
Product Specifications
- Rated to IP68 Specifications
- Contact Rating 25A @ 125C per contact
- Operating Temperature -55C to 125C
- Shock 50G
- Thermoplastic Housing
- Silicon Rubber Seals
- Vibration 20G rms
- 10-2000Hz
