Deutsch 4 Pin Mini DTM Series Complete Connector Kit
Complete Kit
#DT4M

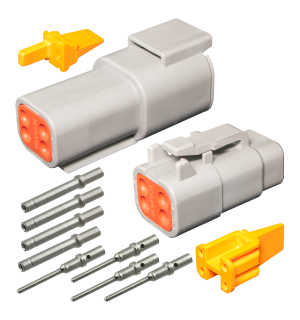

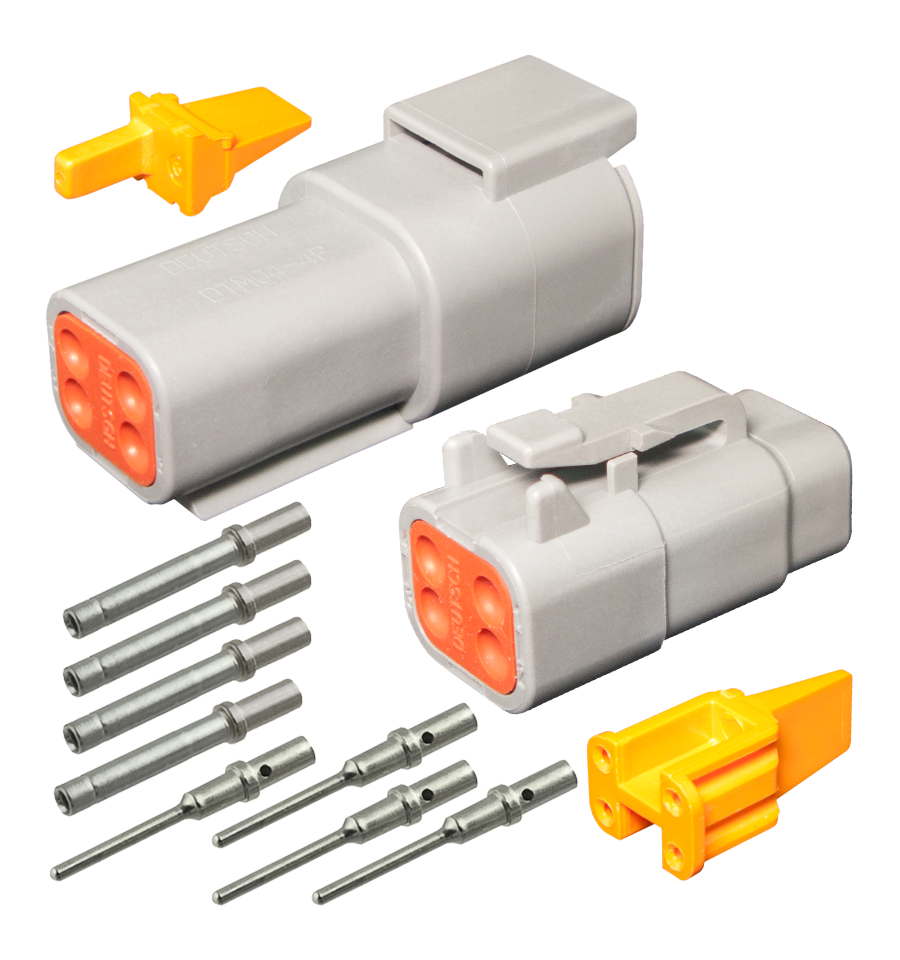

4 circuit mini DT Series Deutsch connector kit. Complete with male and female housings, wedges and terminals. Deutsch DTM series of transportation connectors feature a miniature contact with an enhanced design based on the world class, field-proven Deutsch ‘DT’ Series. The DTM is the connector to be used in harsh environmental applications where reliable signal circuits are critical to operation performance. Typical applications include on or around the engine, the transmission and under the hood. In fact, everywhere data signals or critical electronic circuits go, the field proven Deutsch design of the DTM will provide reliable peak connector performance..
Product Specifications
- Rated to IP68 Specifications
- Contact Rating 7.5A @ 125 degees C per contact
- Operating Temperature -55C to 125C
- Shock 50G
- Thermoplastic Housing
- Silicon Rubber Seals
- Vibration 20G rms 10-2000Hz.
