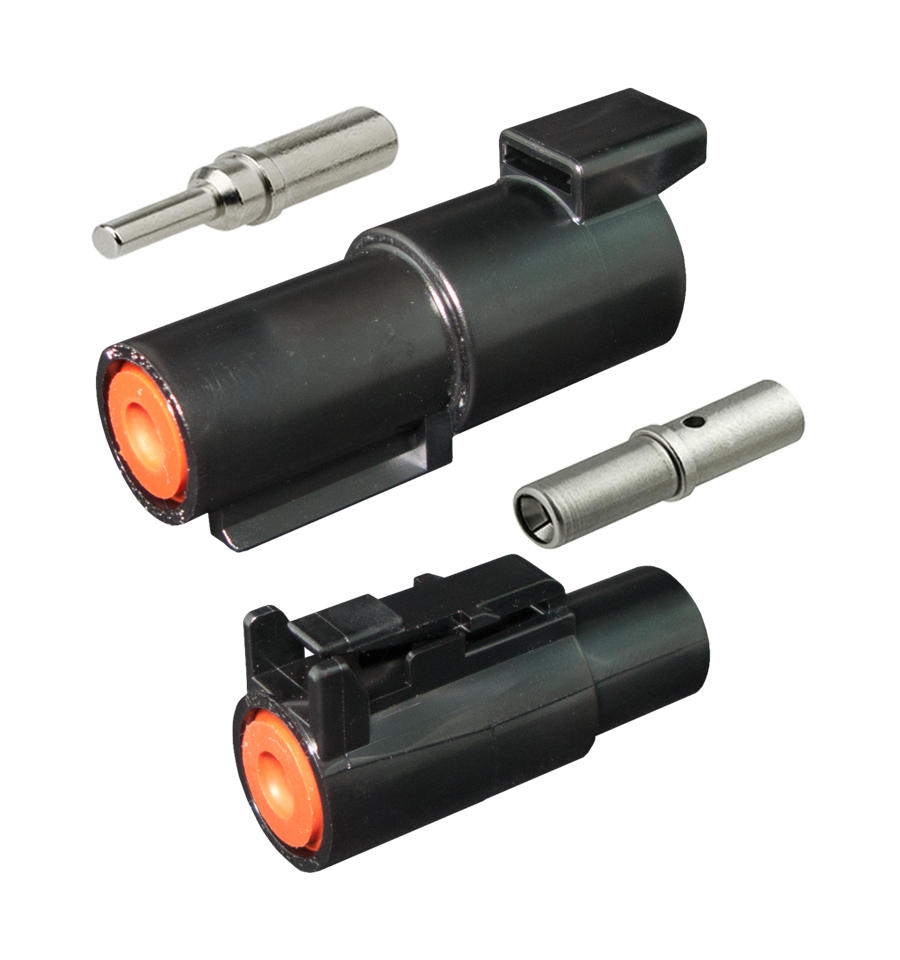

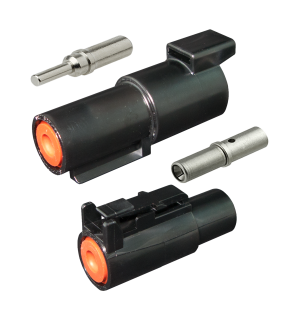

Deutsch DTHD Series Single Circuit Connector Kit - 25A Size 12

Complete Kit

#DTHD1-12KIT

Heavy Duty single circuit DTHD Series Deutsch connector kit. 25A at 12V. Complete with male and female housing and terminals. Deutsch DTHD Series of environmentally sealed connectors are designed specifically for cable to cable applications on the engine or transmission, under the hood, on the chassis or in the cab. Where signal level circuits in harsh environmental conditions, where even a small degradation in connection may be critical, the Deutsch DTHD Series heavy duty connectors will provide reliability and performance.


Product Specifications
  • Environmentally sealed to IP68 standard
  • Latched mating
  • Operating temperature -55C to 125C
  • Shock 50G
  • Vibration 20G rms
  • 10 – 2000Hz



pdficon_small  Download Specsheet
