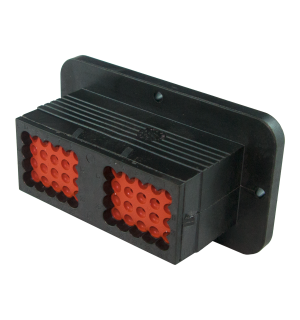

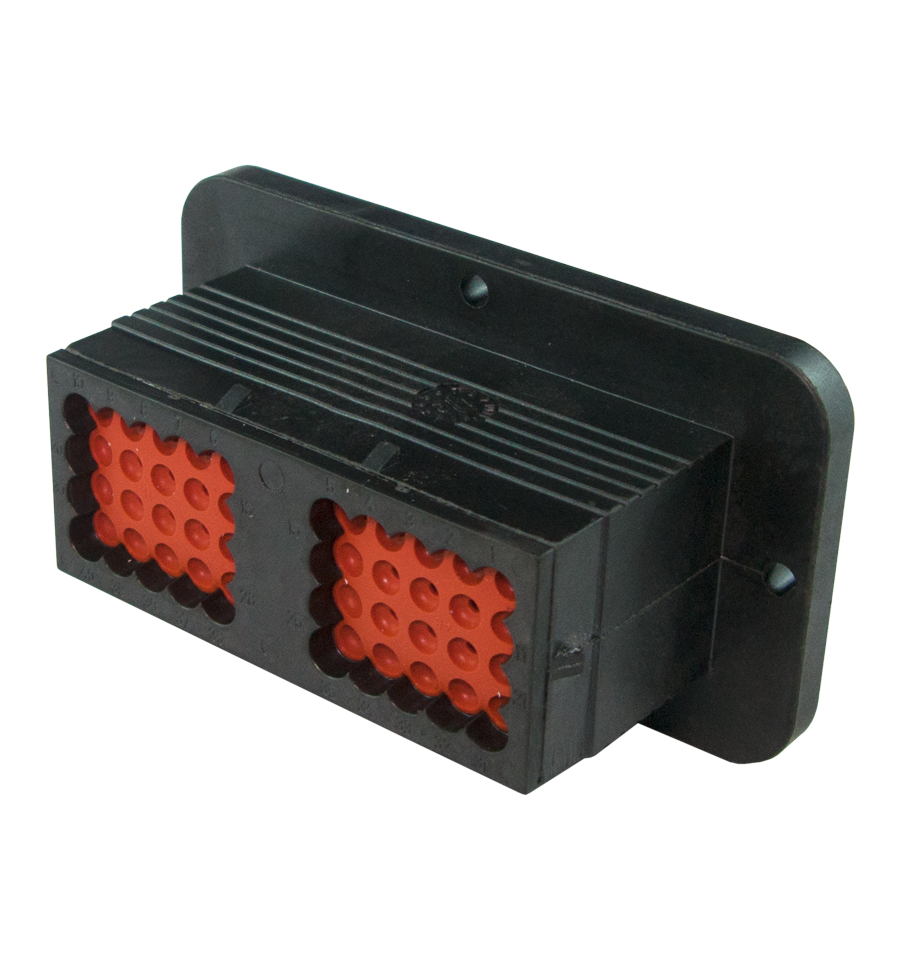

Deutsch DRC Series Flange Mount Receptacle - 40 Pins

Sold Individually

#DRC12-40PA

Deutsch DRC series flange mount receptacle. Takes 40 size 16 pins. Size 16 contacts are rated at 13A per circuit. These industry proven connectors are environmentally sealed to IP68 standards. Able to be used in both inline and bulk head applications. Specifically designed for the truck, mining and construction industry.


Product Specifications
  • Thermoplastic housing with Steel/Brass threaded inserts
  • Silicon rubber seal
  • Shock 50G
  • Vibration 20G rms
  • 10-2000Hz
  • Operating Temperature -55C to 125C
  • Rated to IP68 Specifications



pdficon_small  Download Specsheet
