2mm 5 Core Trailer Cable

100m Roll

#21005C

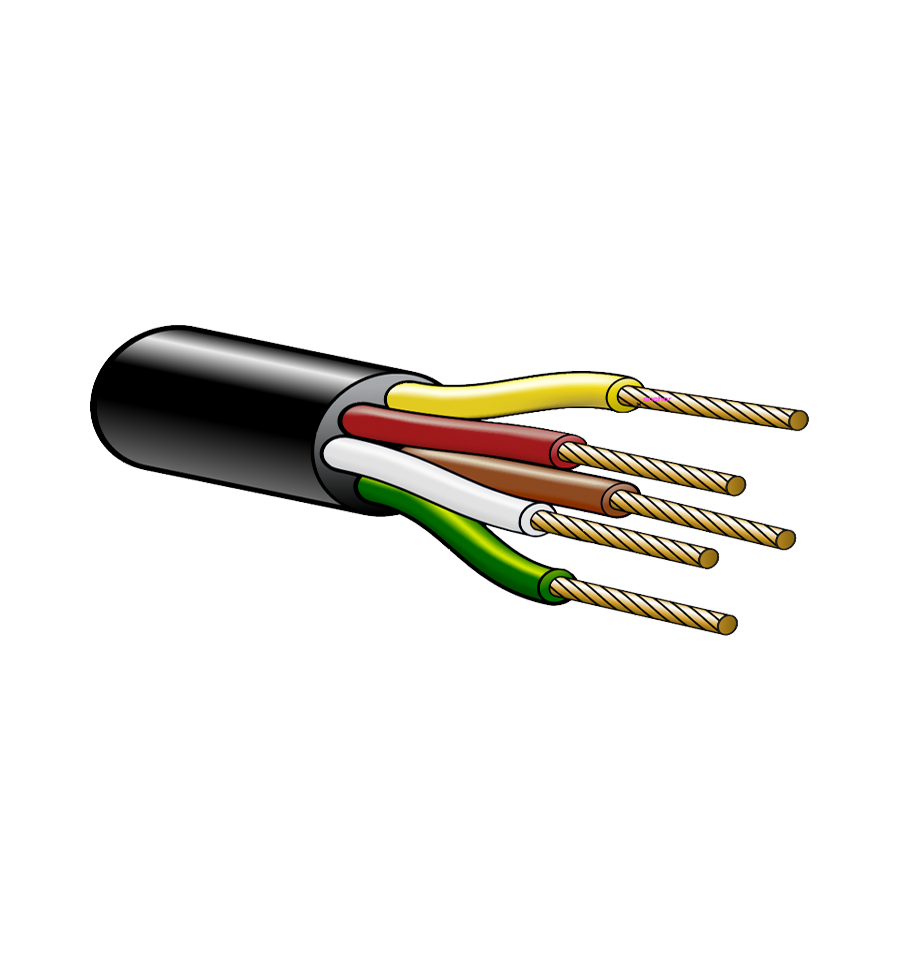

Australian made 2mm (0.56mm2) automotive 5 core trailer cable. Contains 1 white, 1 yellow, 1 brown, 1 red and 1 green inner cable with a black outer sheath.


Product Specifications
  • RoHS Compliant
  • Amperage Rating: 5 Amps
  • Temperature Rating: 90C
  • Conductor: Plain copper conductor to AS1125
  • Insulation: UV stabilised V90HT PVC to AS 3808:2000
  • Voltage: AC 50V / DC 120V to AS/NZS 3000:2000
  • Stranding: 7/0.32



pdficon_small  Download Specsheet
