4mm 7 Core Trailer Cable

100m Roll

#41007C

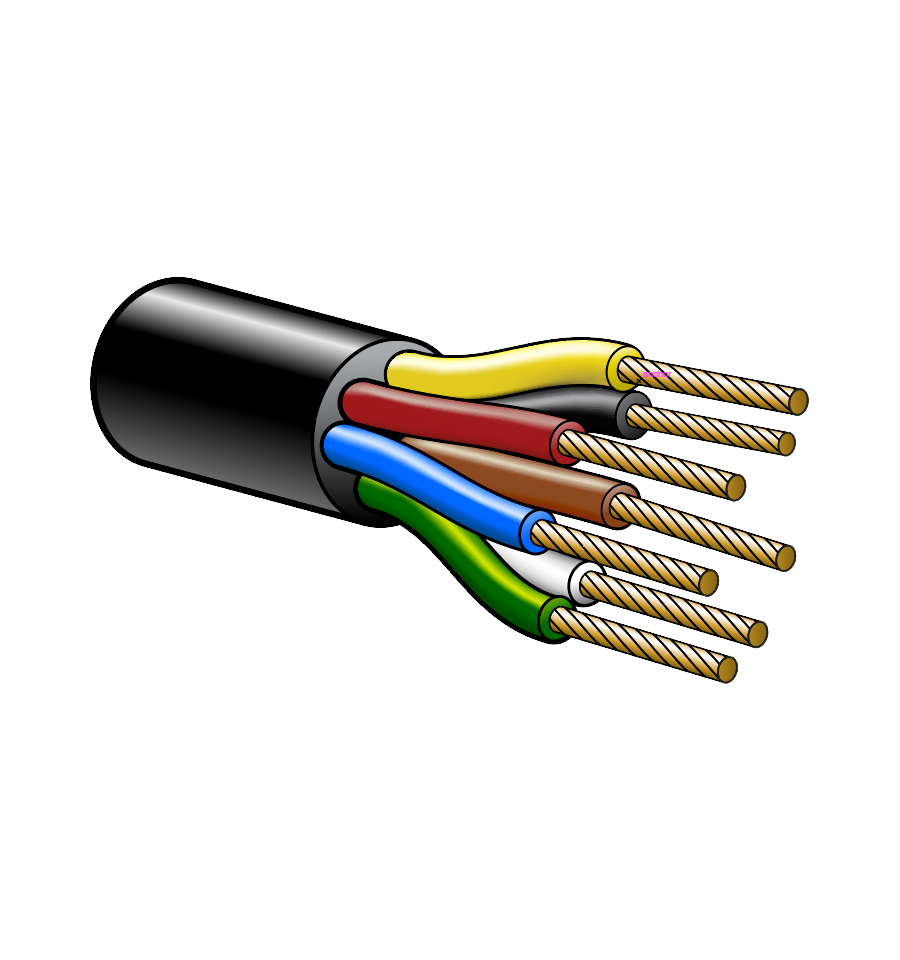

Australian made 4mm (1.84mm2) automotive 7 core trailer cable. Contains 1 white, 1 yellow, 1 brown, 1 red, 1 green, 1 blue and 1 black inner cable with a black outer sheath.


Product Specifications
  • RoHS Compliant
  • Amperage Rating: 15 Amps
  • Temperature Rating: 90C
  • Conductor: Plain copper conductor to AS1125
  • Insulation: UV stabilised V90HT PVC to AS 3808:2000
  • Voltage: AC 50V / DC 120V to AS/NZS 3000:2000
  • Stranding: 26/0.30



pdficon_small  Download Specsheet
